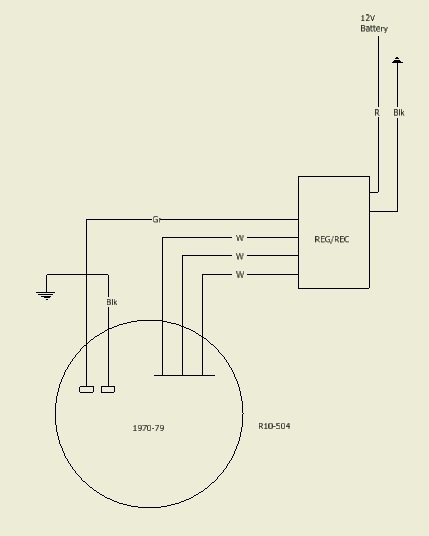

Green = Alternator Brush
Black = Negative
Whites = Stator
Brown wire = Key switch (12v)
Red wire = voltage wire from the regulator to the battery
24-2089 Regulator/Rectifier (Wiring Schematic) Print
Modified on: Fri, 19 Aug, 2022 at 9:23 AM
