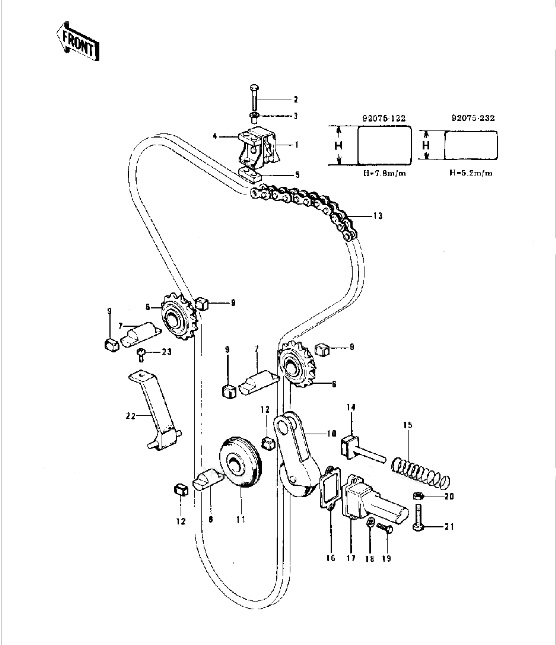

1 IDLER ASSY
12057-001
2 BOLT-UPSET,6X35
112G0635
3 COLLAR
92027-155
(4 needed)
4 DAMPER RUBBER
92075-119
(2 needed)
5 DAMPER RUBBER
92075-120
(2 needed)
6 IDLER ASSY
12057-002
7 SHAFT,GUIDE ROLLER
12052-005
8 SHAFT,CAM CHAIN GUIDE
12052-003
9 RUBBER,GUIDE ROLLAR | USE WITH 12052-005
92075-232
(4 needed)
9 DAMPER RUBBER | USE WITH 12052-002
92075-122
(4 needed)
10 TENSIONER ASSY,CHAIN
12048-001
11 ROLLER,CAM CHAIN GUIDE
12055-002
12 DAMPER RUBBER
92075-123
(2 needed)
13 CHAIN,CAM SHAFT
21070-003
14 PUSH ROD,CAM CHAIN
12054-001
15 SPRING,TENSIONER
92081-107
16 GASKET,TENSIONER
11009-1980
17 HOLDER,TENSIONER
12049-1003
18 WASHER-PLAIN-SMALL
410B0600
(2 needed)
19 BOLT-UPSET,6X20
112G0620
(2 needed)
20 NUT-HEX,6MM
311B0600
21 BOLT,TENSIONER ADJUST
92003-093
22 GUIDE,CAM CHAIN
12053-019
23 SCREW-PAN-CROS,6X10
220B0610
